Diver® Data loggers

Diver® water level data loggers are the world’s most widely used and compact instruments for automatic measurement and registration of groundwater level, conductivity and temperature. Divers are suitable for use in wells as well as open water. The Baro Diver is used for compensating for air pressure variations. With a Diver field modem you can have your data sent to you directly per e-mail or view your data on-line.
You can download the free Diver software, Diver Office, here

Features:

All in one smart water level datalogger
No mechanical parts, no wear
No air vent; flooding is no problem
Ranges vary from 5 – 100 meters !
Can be read on site or in-situ with DDC cable
Can be combined with telemetry
Software enables easy data in and output
Many output formats
Barodiver logs air pressure variations
Smart wizard to subtract air pressure variations
Ideal for wells, also applicable in open water
CTD variety adds conductivity
CTD variety long term sea water proof ceramic


TD-Divers

The TD-Diver is equipped with an internal memory of 72,000 measurements (and 72,000 as backup) Each measurement logs date, time, water level and temperature. Dimensions: Ø 22mm, L 110mm. Memory 72.000 measurements. Battery lifetime 8-10years. Accuracy: Pressure 0,05% of range, temperature 0,1°C.

Item no.
Dimension
Description
Slot
Unit
Price
Item no. 11110402
Dimension
Description

TD-Diver, measuring range 10m

Slot
Unit pcs.
Price Enquire
Item no. 11110404
Dimension
Description

TD-Diver, measuring range 20m

Slot
Unit pcs.
Price Enquire
Item no. 11110406
Dimension
Description

TD-Diver, measuring range 50m

Slot
Unit pcs.
Price Enquire
Item no. 11110408
Dimension
Description

TD-Diver, measuring range 100m

Slot
Unit pcs.
Price Enquire
Item no. 11115601
Dimension
Description

Baro-Diver

Slot
Unit pcs.
Price Enquire

Micro-Divers

With a diameter of only 18mm, the Micro-Diver specfically developed for use in narrow applications. It is equipped with an internal memory of 48,000 measurements.  Each measurement logs date, time, water level and temperature.

Dimensions: Ø 18mm, L 90mm. Memory 48.000 measurements. Battery lifetime 8-10years. Accuracy: Pressure 0,1% of range, temperature 0,1°C.

Item no.
Dimension
Description
Slot
Unit
Price
Item no. 11110202
Dimension
Description

Micro-Diver, 10m

Slot
Unit pcs.
Price Enquire
Item no. 11110204
Dimension
Description

Micro-Diver, 20m

Slot
Unit pcs.
Price Enquire
Item no. 11110206
Dimension
Description

Micro-Diver, 50m

Slot
Unit pcs.
Price Enquire
Item no. 11110208
Dimension
Description

Micro-Diver, 100m

Slot
Unit pcs.
Price Enquire
Item no. 11115601
Dimension
Description

Baro-Diver

Slot
Unit pcs.
Price Enquire

Cera-Divers

The Cera-Diver is a robust and durable water level logger with ceramic corrosion proof housing. It is the perfect long term solution for saline environments.

Dimensions: Ø 22mm, L 90mm. Memory 48.000 measurements. Battery lifetime 8-10years. Accuracy: Pressure 0,05% of range, temperature 0,1°C.

Item no.
Dimension
Description
Slot
Unit
Price
Item no. 11110302
Dimension
Description

Cera-Diver, 10m

Slot
Unit pcs.
Price Enquire
Item no. 11110304
Dimension
Description

Cera-Diver, 20m

Slot
Unit pcs.
Price Enquire
Item no. 11110306
Dimension
Description

Cera-Diver, 50m

Slot
Unit pcs.
Price Enquire
Item no. 11110308
Dimension
Description

Cera-Diver, 100m

Slot
Unit pcs.
Price Enquire
Item no. 11115601
Dimension
Description

Baro-Diver

Slot
Unit pcs.
Price Enquire

CTD-Divers

The CTD- Divers are corrosion proof multi-parameter data loggers for measuring water level and conductivity. The ideal logger solution for long-term solution for monitoring saline environments. It has a conductivity range of 0 to 120 mS/cm with an accuracy of 1% of reading.

Dimensions: Ø 22mm, L 135mm. Memory 144.000 measurements (and 144.000 backup). Battery lifetime 8-10years. Accuracy: Pressure 0,05% of range, temperature 0,1°C.

Item no.
Dimension
Description
Slot
Unit
Price
Item no. 11116001
Dimension
Description

CTD-Diver, 10m

Slot
Unit pcs.
Price Enquire
Item no. 11116002
Dimension
Description

CTD-Diver, 50m

Slot
Unit pcs.
Price Enquire
Item no. 11116003
Dimension
Description

CTD-Diver, 100m

Slot
Unit pcs.
Price Enquire
Item no. 11115601
Dimension
Description

Baro-Diver

Slot
Unit pcs.
Price Enquire

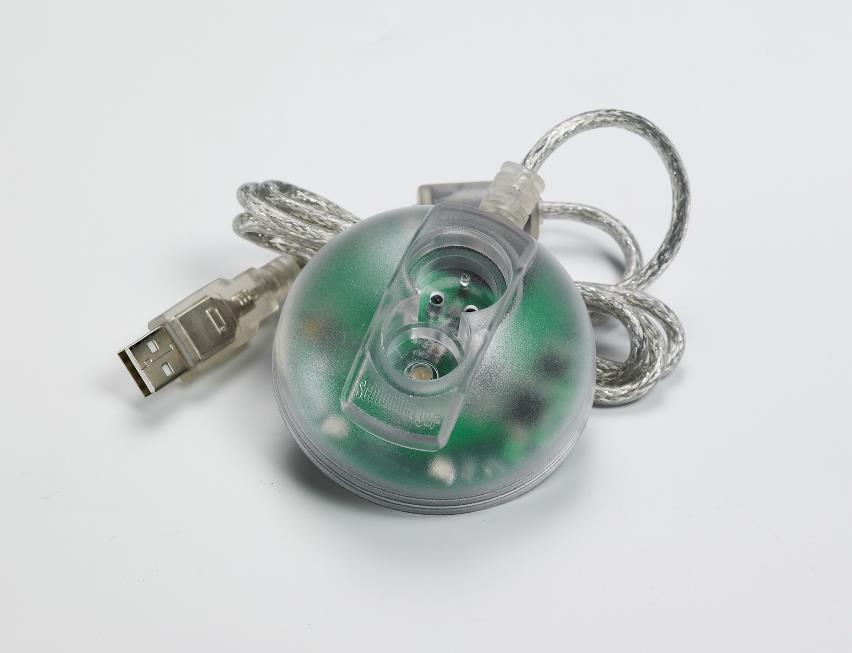

Reading unit for Divers

Diver reading unit for programming or reading data from all types of Divers. Connects to PC via USB. The Diver software Diver Office can be downloaded for free here.

Item no.
Dimension
Description
Slot
Unit
Price
Item no. 11111003
Dimension
Description

Reading unit for all Dviers, USB

Slot
Unit pcs.
Price Enquire

Remote monitoring solution for Divers

The Diver field modem GDT-S sends your Diver data to you per e-mail or you can access your data on-line. The modem is compact, waterproof and uses regular batteries. It is possible to set alarms at pre-programmed water levels. The field modem connects to the Divers with a GDT-Diver data cabel, which is available in lengths up to 200m.

Item no.
Dimension
Description
Slot
Unit
Price
Item no. 113401CS
Dimension
Description

Diver modem, GDT-S Prime IP67. With battery, external antenna and build-in barometer

Slot
Unit pcs.
Price Enquire
Item no. 11115010
Dimension
Description

MDC cable for TD / Micro / CTD Diver og GDT-S, 10 meter

Slot
Unit pcs.
Price Enquire
Item no. 11115020
Dimension
Description

MDC cable for TD / Micro / CTD Diver og GDT-S, 20m

Slot
Unit pcs.
Price Enquire
Item no. 11115030
Dimension
Description

MDC cable for TD / Micro / CTD Diver og GDT-S, 30m

Slot
Unit pcs.
Price Enquire
Item no. 11115060
Dimension
Description

MDC cable for TD / Micro / CTD Diver og GDT-S, 60m

Slot
Unit pcs.
Price Enquire
Item no. 11115001
Dimension
Description

MDC cable for TD / Micro / CTD Diver og GDT-S, 1 meter

Slot
Unit pcs.
Price 1.525,00
Item no. 11115002
Dimension
Description

MDC cable for TD / Micro / CTD Diver og GDT-S, 1 meter

Slot
Unit pcs.
Price 1.686,00

Diver-Mate DM 421

Diver-Mate reading unit for reading out Divers via a MDC cable. Equipped with 16 GB memory SD-card suitable for reading out thousands of Divers (full memory), incl. signal quality control cable. Equipped with Bluetooth. Including USB-C cable for connection to laptop. Built-in battery rechargeable via USB-C.



Item no.
Dimension
Description
Slot
Unit
Price
Item no. 111168
Dimension
Description

Diver-Mate DM 421 reading unit

Slot
Unit pcs.
Price Enquire

DDC (Diver Data Cable) Direct reading cable for TD-, Micro- and Cera-Divers

Data cabel for reading data from TD-, Micro- og Cera-Divers to Diver-Mate or PC (DDC/USB kabel necessary for connection with PC). Available in lengths up to 200m.

Item no.
Dimension
Description
Slot
Unit
Price
Item no. 11114800
Dimension
Description

DDC optical cable for TD/Micro/Cera/CTD and Baro Divers, 1m

Slot
Unit pcs.
Price Enquire
Item no. 11114801
Dimension
Description

DDC optical cable for TD/Micro/Cera/CTD and Baro Divers, 5m

Slot
Unit pcs.
Price Enquire
Item no. 11114802
Dimension
Description

DDC optical cable for TD/Micro/Cera/CTD and Baro Divers, 10m

Slot
Unit pcs.
Price Enquire
Item no. 11114803
Dimension
Description

DDC optical cable for TD/Micro/Cera/CTD and Baro Divers, 15m

Slot
Unit pcs.
Price Enquire
Item no. 1111480301
Dimension
Description

DDC optical cable for TD/Micro/Cera/CTD and Baro Divers, 20m

Slot
Unit pcs.
Price Enquire
Item no. 11114701
Dimension
Description

DDC/PC (USB) communication cable

Slot
Unit pcs.
Price Enquire

Diver accessories

Item no.
Dimension
Description
Slot
Unit
Price
Item no. 0625001
Dimension
Description

Steel wire Ø 1,5mm

Slot
Unit m
Price Enquire
Item no. 0625000
Dimension
Description

Stainless steel wire, Ø 1,5mm

Slot
Unit m
Price Enquire
Item no. 111122
Dimension
Description

Vectran cable, Ø 1,6mm for hanging Divers in well. Coil of 50m.

Slot
Unit rl
Price Enquire
Item no. 0625003
Dimension
Description

Stainless steel carabiner for Divers

Slot
Unit pcs.
Price Enquire
Item no. 0625002
Dimension
Description

Stainless steel wire lock, 1/8"

Slot
Unit pcs.
Price Enquire
